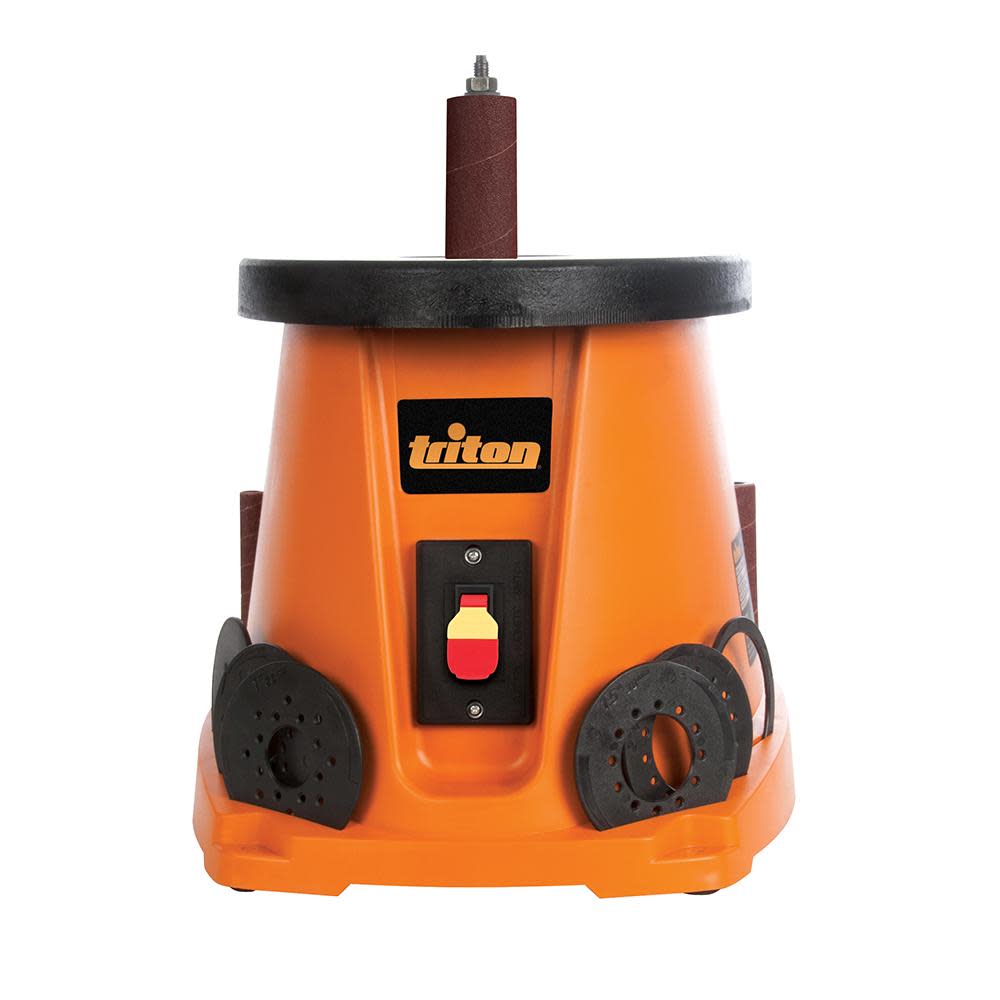

TSPS450 Oscillating Spindle Sander 450W / 1/2hp

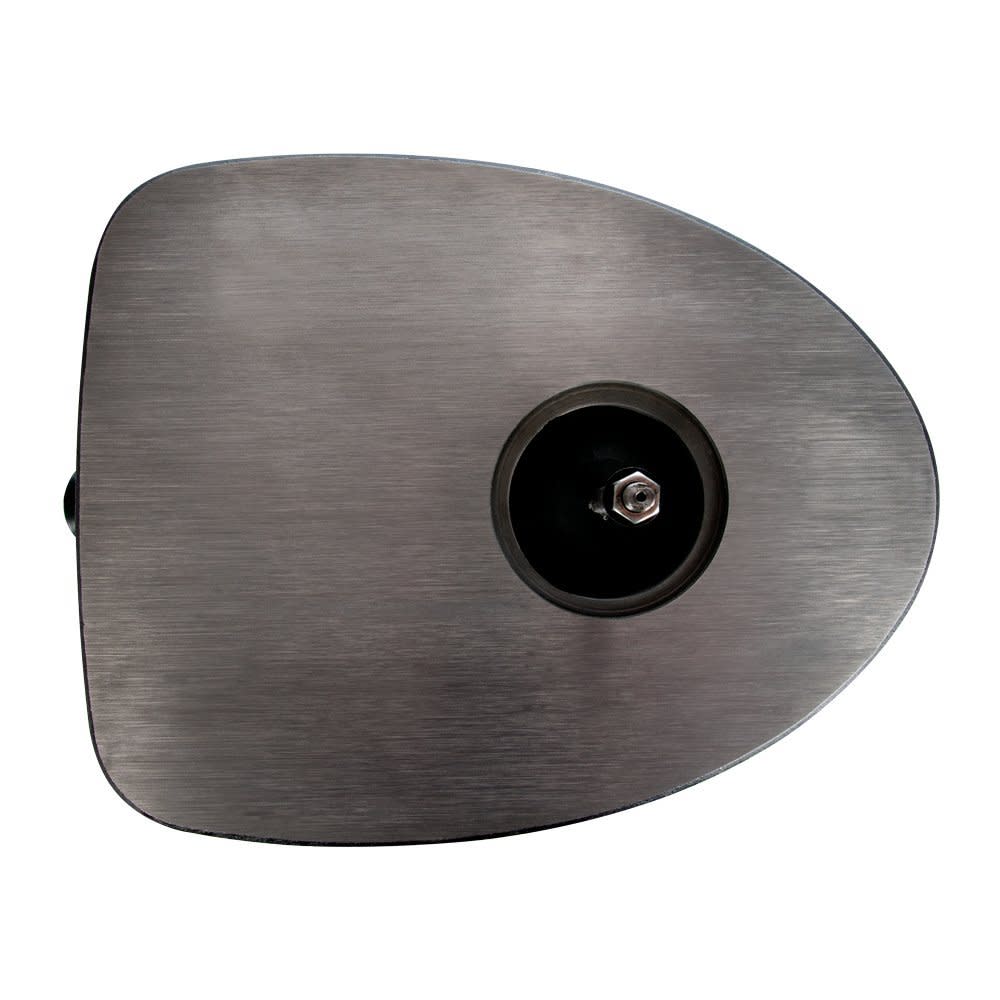

Triton’s Oscillating Spindle Sander offers outstanding performance and a precise finish to every woodworking project. Stability and enhanced material support for larger stock is provided by the 14 1/2″ x 11 1/2″ cast iron table. The oscillating action moves the drum up and down during rotation, reducing the static friction that causes burning and eliminates band marks. It also extends the life of the sanding sleeve by spreading the wear across a broader surface.
Features
Ideal for sanding contours, arcs, curves and other irregular shapes
Rotating and oscillating action for increased speed and efficiency and precise finishing of intricate work
Powerful 3.5A motor

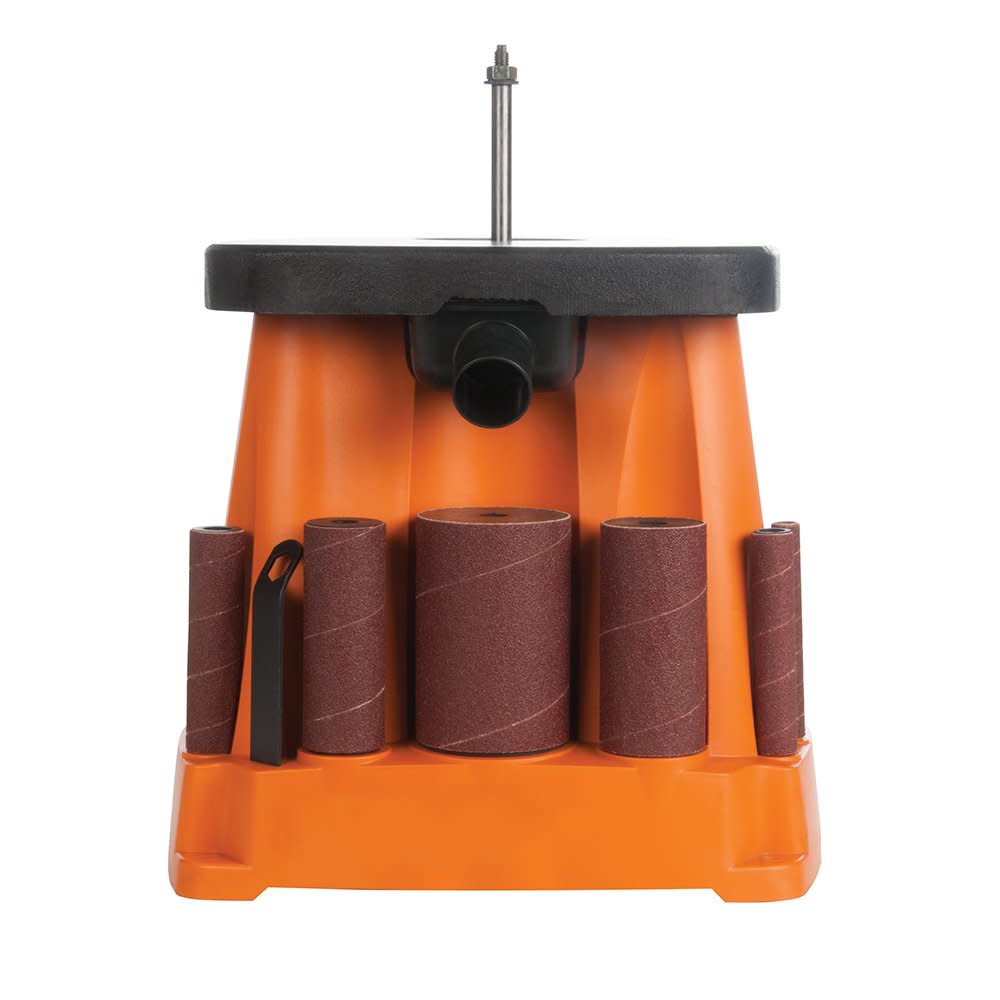

On-Âboard storage for all accessories
1-Â1/2″ Dust port for connection to extraction system
Supplied with 6 sanding sleeves (1/2″ Â 3″ dia, 80 Grit), with matching rubber drums and table inserts
Specifications
Acme Tools Brand Name
TRITON POWER TOOLS
Acme Tools Part Number
700094T
Amperage (A)
3.5
Assembled Depth (in)
16
Assembled Height (in)
18
Assembled Weight (lbs)
23.7
Assembled Width (in)
13
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
Taiwan
Dust Collection
Yes
Dust Collection Method
1/2″ Port
Height (in)
18
Lock-on Switch
Yes
Package Contents
(1) Oscillating Spindle Sander TSPS450, (6) Sanding Sleeves 80 Grit 1/2, 3/4, 1, 1Â-1/2, 2 and 3″, (6) Table Inserts 1/2, 3/4, 1, 1-Â1/2, 2 and 3″, (5) Rubber Sanding Drums 3/4, 1, 1Â-1/2, 2 and 3″, (3) Upper spindle washers 5/8, 1, 1-Â13/16″, (1)
5/16″ Wrench, (1) Instruction manual
5/16″ Wrench, (1) Instruction manual
Package Depth
16
Package Height
20
Package Weight
24.7
Package Weight (lbs)
24.7
Product Storage Included
Bag
Sander Style
Spindle
Sandpaper Type
Sleeves, Drums
Speed (Surface Feet / Orbits Per Minute)
2000rpm
Voltage
120 Volts
