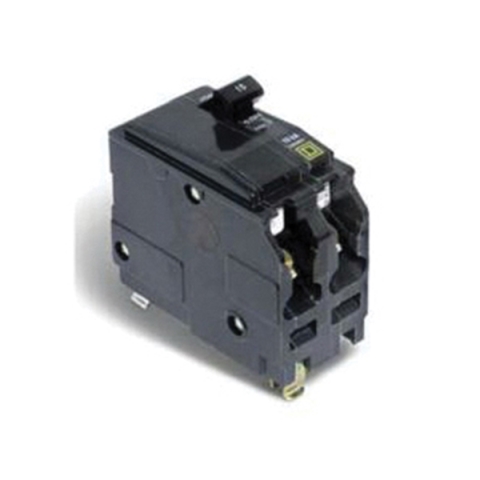

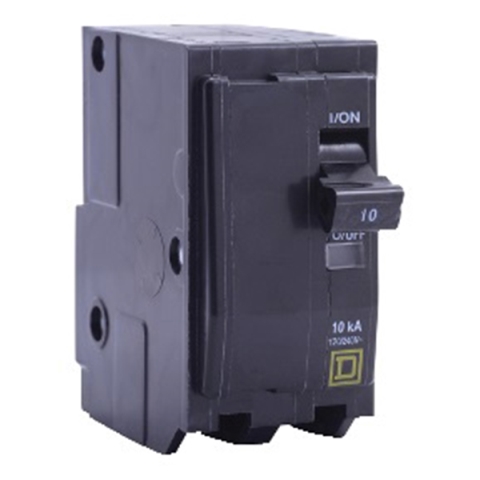

Description
The industry leader in circuit protection is easily recognized by the industry’s only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.
| Actuator Type | : | Magnetic, Thermal |
| Color | : | Almond |
| Current Rating | : | 30 A |
| Dimensions | : | 1.5 in W x 2.91 in D x 3 in H |
| Interrupt Rating | : | 5, 10 kA |
| Mounting Type | : | Plug |
| Number Of Poles | : | 2 |
| Number of Spaces | : | 2 |
| Operating Frequency | : | 50/60 Hz |
| Operating Temperature | : | 104 deg F |
| Trip Type | : | Thermal Magnetic |
| Type | : | In-Line |
| Voltage Rating | : | 120/240 VAC, 48 VDC |
| Wire Size | : | 14 to 18 AWG |
