Description

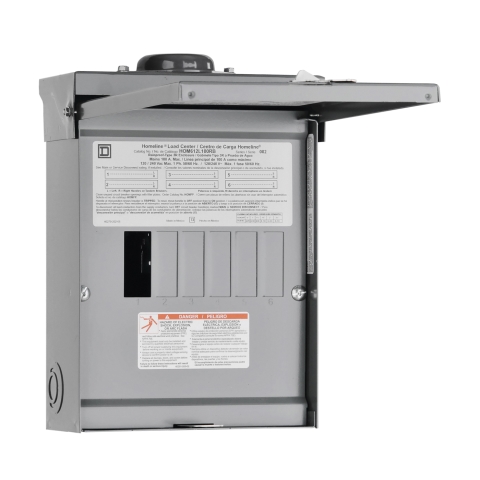

Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
| Breaker/Load Center Type | : | Main Lug |
| Bus Bar Material | : | Aluminum |
| Buss Bar Material | : | Aluminum |
| Cable Size | : | #8 to 1 AWG |
| Color | : | Gray |
| Cover/Lid Type | : | Surface |
| Current Rating | : | 100 A |
| Enclosure Material | : | Welded Galvannealed Steel |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Baked Enamel |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug |
| Number Of Circuits | : | 12 |
| Number of Phases | : | 1 |
| Number of Spaces | : | 6 |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
