Description

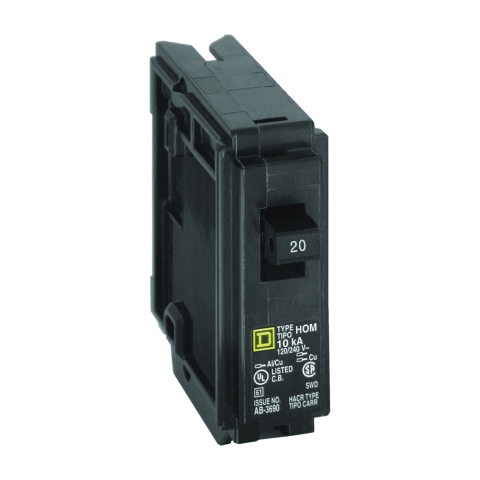

Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
| Actuator Type | : | Quick-Make, Quick-Break |
| Color | : | Black |
| Current Rating | : | 20 A |
| Dimensions | : | 1 in W x 2.98 in D x 3.13 in H |
| Frame Size | : | 100 A |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug |
| Number Of Poles | : | 1 |
| Number of Phases | : | 1 |
| Operating Frequency | : | 50/60 Hz |
| Operating Temperature | : | 104 deg F |
| Terminal Type | : | Clamp |
| Trip Sensitivity | : | 27 A |
| Trip Type | : | Fixed |
| Type | : | Mini |
| Voltage Rating | : | 120 V |
| Wire Size | : | 14 to 10, 14 to 8 AWG |
