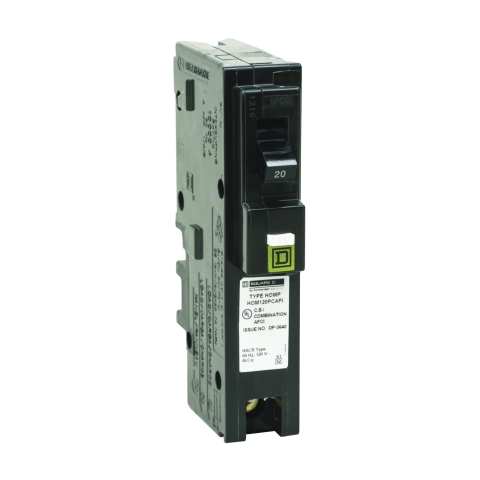

Description
Continuously monitors the circuit and quickly turns off the power (trips) when a dangerous condition is detected. Equipped with a diagnostic feature known as time-saver diagnostics which indicates the type of fault that last occurred on the circuit.
| Current Rating | : | 20 A |
| Dimensions | : | 1 in W x 2.98 in D x 3.13 in H |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug |
| Number Of Poles | : | 1 |
| Number of Phases | : | 1 |
| Operating Frequency | : | 50/60 Hz |
| Operating Temperature | : | 104 deg F |
| Terminal Type | : | Screw Clamp |
| Type | : | CAFCI, Mini |
| Voltage Rating | : | 120 V |
| Wire Size | : | 14 to 8, 14 to 10 AWG |
