Description

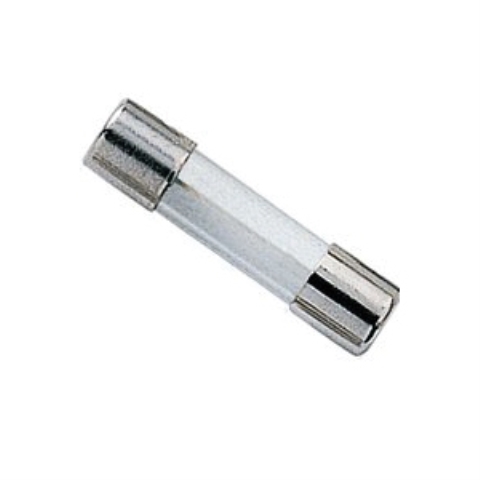

Fast acting for maximum protection. Glass tube construction. Nickel or silver-plated brass. 5 mm x 20 mm. UL/CSA 248-14 rated.
| Body Material | : | Glass |
| Contact Material | : | Brass |
| Current Rating | : | 1 A |
| Diameter | : | 5 mm |
| Element Type | : | Single |
| Fuse Group | : | E |
| Fuse Type | : | Electronic, Fast Acting |
| Interrupt Rating | : | 35 A, 10 kA |
| Length | : | 20 mm |
| Rejection/Non-Rejection | : | Non-Rejection |
| Resistance | : | 0.163 Ohm |
| Voltage Rating | : | 125/250 V |
