Description
Product Information
SKU255109
Mfr Part#BVN650M1
UPC731304412991
General
Color:Black
Topology:Standby
Input
Voltage:88V – 143V
Frequency (50/60Hz):50/60 Hz +/- 3Hz
Input Connection:NEMA 5-15P
Output
VA Rating:650 VA
Watts:360 Watts
On Battery Frequency:50Hz/60Hz +/- 1Hz
On Battery Waveform:Stepped Approximation to a Sinewave
Output Connection:NEMA 5-15R
Outlets – Total:7
Outlets – Battery & Surge Protected:5
Outlets – Surge-Only Protected:2
USB Charge Port:1
USB Amps:2.1A
Transfer Time:6ms
Battery
Runtime – Half Load:10 Minutes
Runtime – Full Load:1.9 Minutes
Battery Size:12V/6AH
Battery Quantity:1
Typical Recharge Time:6 to 8 hours (to 90% of full capacity)
Battery Type:Sealed Lead-Acid
Surge Protection & Filtering
Surge Protection:490 Joules
Management & Communications
Audible Alarms:On Battery
Overload
Distinctive Low Battery
Environmental Specifications
Operating Temperature:32 – 104 F (0 – 40 C)
Storage Temperature:5 – 113 F (-15 – 45 C)
Operating Humidity:0 – 90%
Operating Elevation:0 – 6666ft (0 – 2031.8meters)
Storage Elevation:0-10000ft ( 0-3000meters )
Certifications
Certifications:UL1778
FCC Part 15 Class B
cTUVus
Physical Specifications
Width:4.13 in. (104.90 mm)
Depth:10.79 in. (274.07 mm)
Height:5.47 in. (138.94 mm)
Weight:6.83 lbs. (3.10 kg)
Box Dimensions (WxDxH):5.67 x 13.50 x 8.70 in. (144.02 x 342.90 x 220.98 mm)
Package Contents

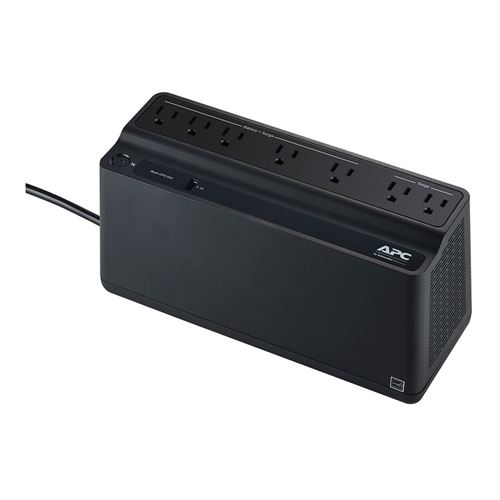

What's in the Box:APC Back-UPS BVN650M1, Instructions
Warranty
Parts:3-year warranty on the unit, and 1-year warranty on the battery
Labor:3-year warranty on the unit, and 1-year warranty on the battery
