Description
Product Information
SKU182881
Mfr Part#BX1500M
UPC731304331780
General
Color:Black
Topology:Line Interactive
Efficiency at Full Load:98.9%
Input
Voltage:88 – 139V
Input Connection:NEMA 5-15P
Output
VA Rating:1500 VA
Watts:900 Watts
On Battery Frequency:60Hz
Output Connection:NEMA 5-15R
Transfer Time:8ms
Battery
Runtime – Half Load:10.9 Minutes
Runtime – Full Load:2.8 Minutes
Replacement Battery:APCRBC124
Battery Quantity:1
Typical Recharge Time:16 Hours
Battery Type:Sealed Lead-Acid
Surge Protection & Filtering
Surge Protection:789 Joules
Coaxial Protection:1-In, 1-Out
Management & Communications
USB Port:Yes
RJ-45 Network Port:Yes
Audible Alarms:On Battery
Low Battery
Overload
LCD Screen:Multi-Function LCD
Environmental Specifications
Sound Emission:45dBa
Operating Temperature:32 – 104 F (0 – 40 C)
Storage Temperature:5 – 104 F (-15 – 40 C)
Operating Humidity:0 – 95%
Storage Humidity:0 – 95%
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Elevation:0-50000 feet (0-15000 meters)
Certifications
ROHS:ROHS Compliant
Physical Specifications
Width:3.94 in. (100.08 mm)
Depth:15.04 in. (382.02 mm)
Height:9.80 in. (248.92 mm)
Weight:24.25 lbs. (11.00 kg)
Box Dimensions (WxDxH):19.40 x 13.60 x 8.90 in. (492.76 x 345.44 x 226.06 mm)
Package Contents

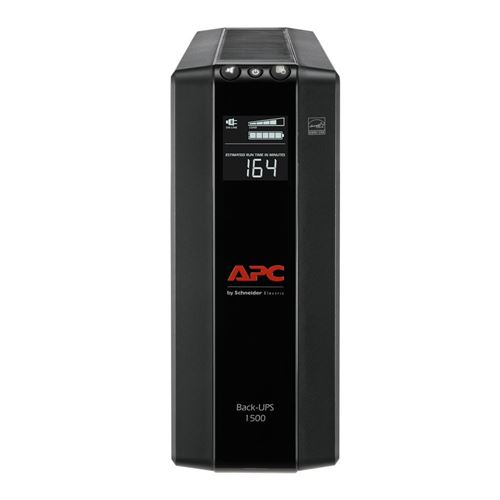

What's in the Box:APC Battery Back-UPS Pro BX1500M
Warranty
Equipment Protection Warranty:$250,000 Connected Equipment
Parts:3 Years Limited
Labor:3 Years Limited
